RDH315 pipe plastic pipe hot-melt welding machine

Description

Name: PE plastic pipe hydraulic thermal welding machine

Model: RDH315

Welding range: 160-315mm

Volume: 1.11M fand

Net weight: 210KGS

Gross weight: 300KGS

Product description:

RDH315/160 PE plastic pipe hydraulic thermal welding machine

Use:

Suitable for in site and the workshop will be PE, PP and other plastic pipes and tubes, pipes and fittings of hot melt welding.

Characteristic：

1. The machine consists of frame, cutter, electric heating plate and basket (electric heating plate and the cutter bracket is composed of four parts)
   The use of PTFE coating on the surface of the electric heating plate
2. Independent temperature control system The electric milling mode, with single and double milling function. Insert is made of high quality tool steel, double blade design, adjustable double use.
   The main part of the
3. frame for Aluminum Alloy material, has the advantages of simple structure, compact, easy to operate
4. Infiltration and cooling stage has two independent channels.
5. high precision shockproof pressure gauge shows more accurate readings.

Optional components:

• Flange Clamp
• A Small Cart
• Single Fixture
• Recorder

The main technical parameters:

The welding specifications: 160mm315mm pipe(160mm180mm200mm225mm250mm280mm315mm)

The applicable materials: PE, PP and PVDF

The working voltage: 220V ~ + 10%, 50Hz

The total power of 4.95 kW, including:.1.1 cutter kW electrothermal plates: 3.1 kW hydraulic station: 0.75 kW

The electric heating plate adopts Teflon coating; temperature control temperature, high accuracy of surface temperature is less than 7 degrees;

The working environment: 180 -250 OC

The application of environmental temperature: – 45 degrees

The electronic timer can automatically record the infiltration heat and cooling time.

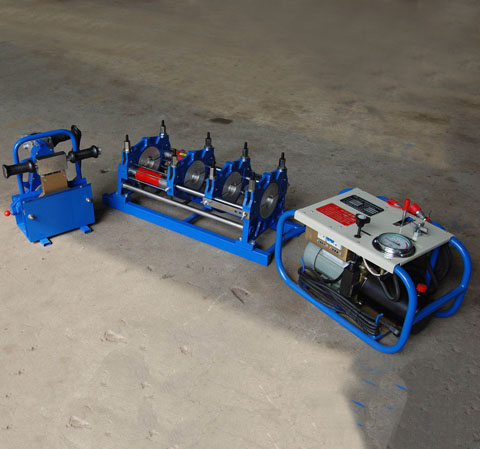

The machine consists of a frame, cutter, electric heating plate, a hydraulic station and a basket (electric heating plate and the cutter bracket is composed of five parts)
