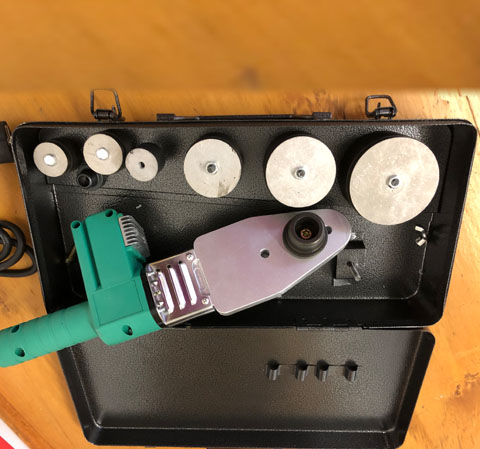

RDS-63D hand-held intelligent socket welder

Name: portable intelligent socket welding machine
Model: RDS-63D
Certificate: ISO9001, CE

Uses and characteristics:

    • Suitable for PE, PPR pipe, pipe hot melt socket connection
    • Preset welding parameters, select the outer diameter of the pipe can automatically select heating time
    • Socket welding is one of the oldest and most economical fusion method.
    • Socket welding used for gas, pipeline, water, wastewater, industrial, mining and oil pipeline block application, simple structure, compact appearance, convenient operation.
    • Smart socket welding machine improved heating temperature accuracy of the digital controller and screen
    • Temperature range can be set according to different plastic pipes and fittings, melting temperature required can be set and displayed on the screen, the ambient temperature will be adjusted and updated automatically, high temperature will automatically alarm etc..
    • Structure design conforms to the DVS2207 standard.

Technical Parameter

Model RDS-63D
Welding Range Phi 20mm- Phi 63mm
Die Head D20. D25.D32.D40, D50, D63
Voltage A.C220/230V, 50HZ
Power 800W
Work Environment 200-270 ~ C
Ambient Temperature -5 C- 45 C
Suitable for Materials PE PP PPR
Size 395*200*90mm
Net Weight 4.6KGS
Product Enquiry
Category:

Description

Name: portable intelligent socket welding machine
Model: RDS-63D
Certificate: ISO9001, CE

Uses and characteristics:

    • Suitable for PE, PPR pipe, pipe hot melt socket connection
    • Preset welding parameters, select the outer diameter of the pipe can automatically select heating time
    • Socket welding is one of the oldest and most economical fusion method.
    • Socket welding used for gas, pipeline, water, wastewater, industrial, mining and oil pipeline block application, simple structure, compact appearance, convenient operation.
    • Smart socket welding machine improved heating temperature accuracy of the digital controller and screen
    • Temperature range can be set according to different plastic pipes and fittings, melting temperature required can be set and displayed on the screen, the ambient temperature will be adjusted and updated automatically, high temperature will automatically alarm etc..
    • Structure design conforms to the DVS2207 standard.

Technical Parameter

Model RDS-63D
Welding Range Phi 20mm- Phi 63mm
Die Head D20. D25.D32.D40, D50, D63
Voltage A.C220/230V, 50HZ
Power 800W
Work Environment 200-270 ~ C
Ambient Temperature -5 C- 45 C
Suitable for Materials PE PP PPR
Size 395*200*90mm
Net Weight 4.6KGS
