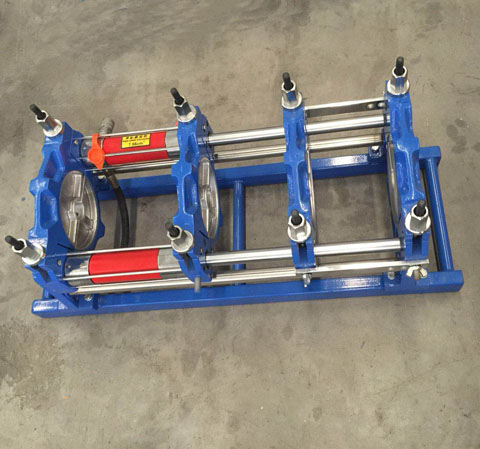

RDHS200/63 manual hot-melt welding machine

Name: Manual hot melt welding machine

Model: RDHS200

Welding range: 63-200mm

Volume: 0.45M fand

Net weight: 71KGS

Gross weight: 104KGS

Product description:

RDHS200/63 manual hot melt welding machine

Use:

Suitable for in site and the workshop will be PE, PP and other plastic pipes and tubes, pipes and fittings of hot melt welding.

Characteristic:

  1. The machine consists of frame, cutter, electric heating plate and basket (electric heating plate and the cutter bracket is composed of four parts)
  2. The use of PTFE coating on the surface of the electric heating plate 2. Independent temperature control system
  3. The electric milling mode, with single and double milling function. Insert is made of high quality tool steel, double blade design, adjustable double use.

The main part of the 4. frame for Aluminium Alloy material, has the advantages of simple structure, compact, easy to operate

Technical parameters:

The welding specifications: 63mm200mm pipe (63mm – 75mm – 90mm110mm125mm140mm160mm180mm200mm)

The applicable materials: PE, PP and PVDF

The working voltage: 220V ~ + 10%, 50Hz

The total power: 2.65kW, the cutter: 0.85 kW electric board: 1.8 kW

The electric heating plate adopts Teflon coating; temperature control temperature, high accuracy of surface temperature is less than 5 degrees;

Working temperature: – 180 DEG -250 DEG

The application of environmental temperature: – 45 degrees

The electronic temperature control, the temperature is more accurate and more reliable welding.

The pressure gauge with operation

The machine consists of a frame, cutter, electric heating plate and basket (electric heating plate and the cutter bracket is composed of four parts)

Product Enquiry
Category:

Description

Name: Manual hot melt welding machine

Model: RDHS200

Welding range: 63-200mm

Volume: 0.45M fand

Net weight: 71KGS

Gross weight: 104KGS

Product description:

RDHS200/63 manual hot melt welding machine

Use:

Suitable for in site and the workshop will be PE, PP and other plastic pipes and tubes, pipes and fittings of hot melt welding.

Characteristic:

  1. The machine consists of frame, cutter, electric heating plate and basket (electric heating plate and the cutter bracket is composed of four parts)
  2. The use of PTFE coating on the surface of the electric heating plate 2. Independent temperature control system
  3. The electric milling mode, with single and double milling function. Insert is made of high quality tool steel, double blade design, adjustable double use.

The main part of the 4. frame for Aluminium Alloy material, has the advantages of simple structure, compact, easy to operate

Technical parameters:

The welding specifications: 63mm200mm pipe (63mm – 75mm – 90mm110mm125mm140mm160mm180mm200mm)

The applicable materials: PE, PP and PVDF

The working voltage: 220V ~ + 10%, 50Hz

The total power: 2.65kW, the cutter: 0.85 kW electric board: 1.8 kW

The electric heating plate adopts Teflon coating; temperature control temperature, high accuracy of surface temperature is less than 5 degrees;

Working temperature: – 180 DEG -250 DEG

The application of environmental temperature: – 45 degrees

The electronic temperature control, the temperature is more accurate and more reliable welding.

The pressure gauge with operation

The machine consists of a frame, cutter, electric heating plate and basket (electric heating plate and the cutter bracket is composed of four parts)
